Project Description

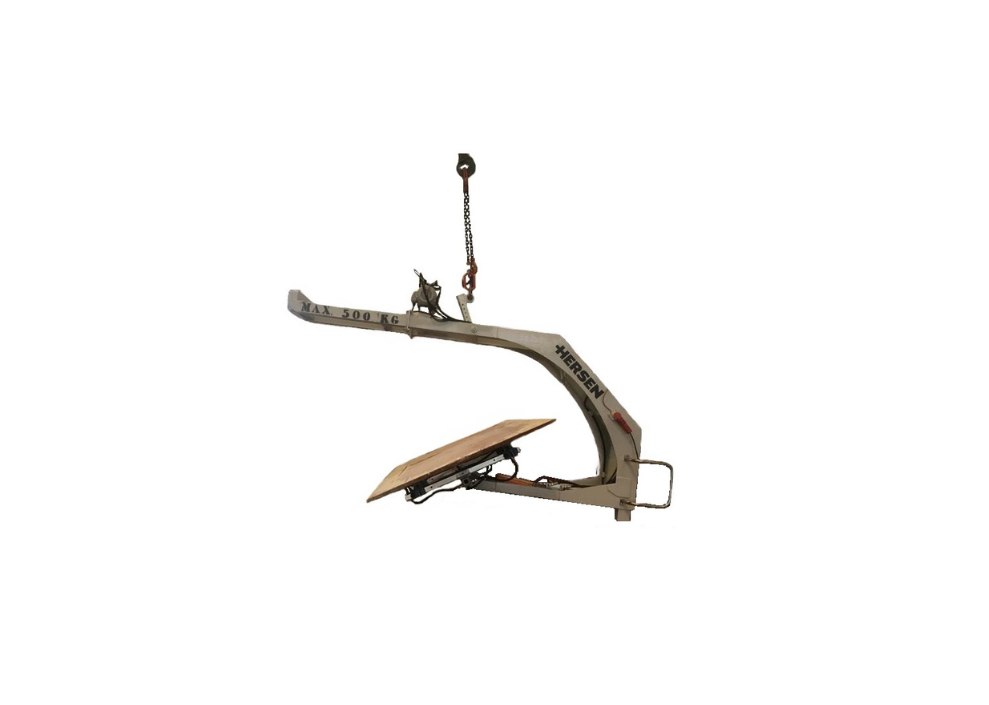

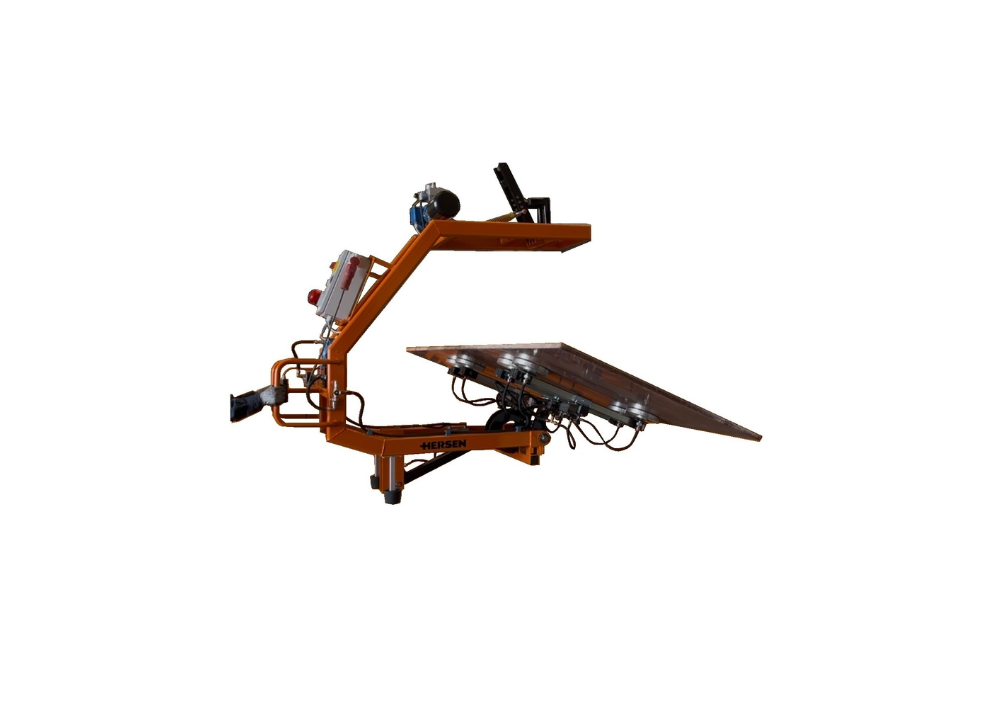

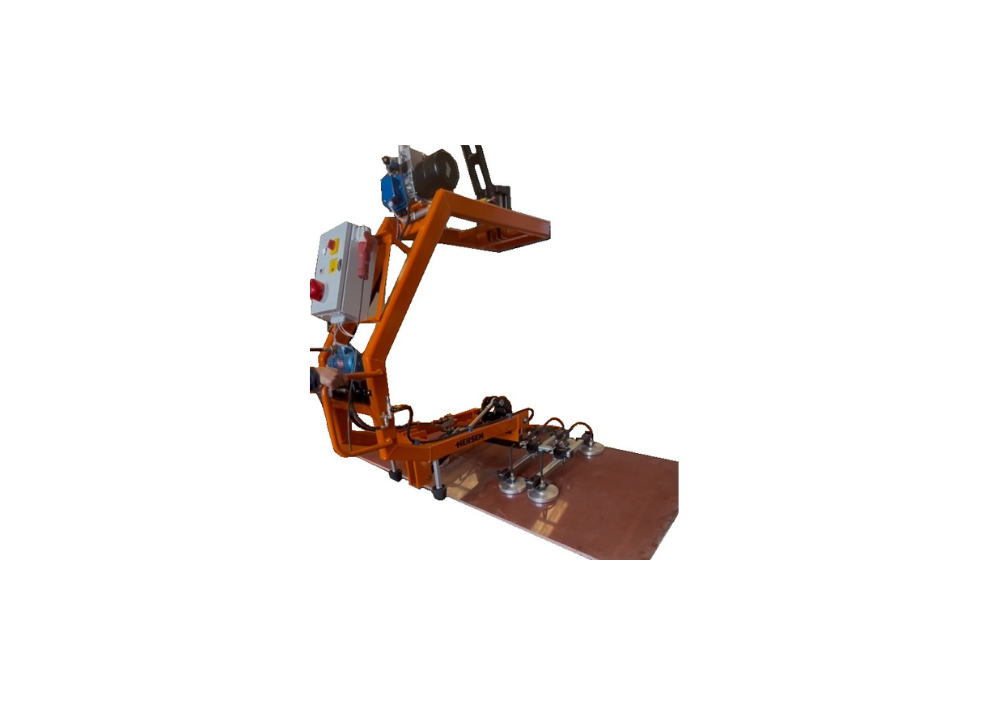

Vacuum lifter with tilting 0º – 180º automatic

Ref. 50780

Vacuum to turn or rotate boards from 0º to 180º from 10kg to 1000kg.

Widths from 50 cm to 3m and lengths from 1m to 13m

Technical characteristics:

Fixed central structure and mobile arms in tubular structure with high elastic limit
4 mobile suction cups of 200 mm.
Load capacity from 10 kg to 1000 kg
Operation by compressed air 6 BAR or by vacuum pump.
Deck rotation from 0º to 180º by pneumatic piston or hydraulic piston, depending on the load capacity
Display control and vacuum indicator
anti-fall valve
vacuum filter
Security system
Acoustic-visual alarm of minimum and maximum pressure
Vacuum reserve tank in case of accidental failure in the flow of compressed air
Board width from 50cm to 3m
Board length from 1m to 13m
